Medistrom Pilot Flex

98Wh Backup Power Supply for 12V & 24V CPAP

Description

WORLDS SMALLEST BACKUP AND TRAVEL CPAP BATTERY

Measuring just 17 cubic inches and weighing slightly more than 1 pound, the Pilot Flex is... the smallest and lightest CPAP battery in the World!

​The Pilot Flex is the ultimate CPAP battery for travelling. While using the battery in back-up configuration, say goodbye to bulky nightstand set ups.

WORLDS SAFEST BACKUP AND TRAVEL CPAP BATTERY

The Pilot Flex is cast out of aluminum and never uses plastic. The sleek aluminum body serves as a superior heat dissipation mechanism to help prevent overheating and damage to the internal components during operation, unlike batteries using plastic shells.

​Utilizing aluminum casing greatly extends the total lifespan and durability of the Pilot Flex! When batteries power devices, heat is generated internally which causes the outer casing to expand and warp. Because aluminum is an incredible malleable metal, the outer shell of the Pilot Flex can easily return back to its original structure without becoming cracked, dented, or warped during extended usage.

WORLDS MOST POWERFUL BACKUP AND TRAVEL CPAP BATTERY

The newly designed Pilot Flex has a high capacity of 98Wh allowing for its longest run times yet! This is the most powerful CPAP battery which adheres to the FAA/TSA compliance regulations by remaining under the threshold of 100Wh for all global aircraft.

Specifications
Capacity 98 Wh
Cell Type LG/Samsung Industrial Grade Genuine Rechargeable Lithium Ion Cells
DC Rated Input 12V-24V 60W
DC Rated Output 12V/24V 60W
USB-A Out 5V-12V 18W Max
USB-C Input 5V-20V 45W Max
USB-C Out 5V-20V 45W Max
Life Span Over 500 full charge/discharge cycles
Battery Casing Aluminum
Dimensions 7.5cm x 16.7cm x 2cm
Weight 1.2lb
Unlimited Linking Technology Yes! You can link multiple batteries together for even stronger power
Power Gauge 4 Stage Charge Level Indicator Lights
Recharge Time 2-3 hours (7-9 using the ResMed AirMini AC Adapter; 4-6 hours using 45W USB-C charger)
Compatibility
  • ResMed AirMini
  • ResMed AirSense 11*
  • ResMed AirSense 10*
  • Löwenstein Medical Prisma SMART*
  • Apex Medical iCH*
  • Sefam S.Box*
  • SmartMed iBreeze*
  • 3B Medical Luna*
  • Philips Respironics DreamStation 1*
  • Philips Respironics DreamStation 2*
  • Philips Respironics System One S60*

*Cable required to connect Medistrom Pilot Flex to these machines are sold separately. Click here to browse cable kits.

Runtime
Brand Machine Model Pressure (cm H2O) Humidifier and Heated Tubing Run Time
ResMed AirMini Low - 5 No 19hrs 42min
Medium - 10 12hrs 44min
AirSense 10 Low - 5 Yes 2hrs 33min
No 15hrs 54min
Medium - 10 Yes 2hrs 16min
No 11hrs 20min
AirSense 11 Low - 5 Yes 2hrs 59min
No 17hrs 55min
Medium - 10 Yes 2hrs 17min
No 11hrs 34min
Philips Respironics DreamStation 1 Low - 5 Yes 3hrs 13min
No 19hrs 13min
Medium - 10 Yes 3hrs 2min
No 12hrs 16min
DreamStation 2 Low - 5 Yes 3hrs 5min
No 17hrs 55min
Medium - 10 Yes 2hrs 53min
No 12hrs
Löwenstein Löwenstein Prisma SMART Low - 5 No 17hrs 59min
Medium - 10 No 12hrs 49min
BMC Luna G3 Low - 5 Yes 3hrs 16min
No 27hrs 8min
Medium - 10 Yes 3hrs 6min
No 14hrs 47min
What's Included
  1. Pilot Flex Battery
  2. Output Cable for ResMed AirMini
  3. Short Charging Adapter for ResMed AirMini
  4. Product Manual & Quick Start Guide (English, French, Spanish)

Documents
Download Manual

Download Travel Letter

Dual Voltage Technology

The Pilot Flex combines our previous battery capabilities making it compatible with both 12V and 24V machines. You no longer need to purchase different batteries based upon the CPAP machine you use! The battery will automatically detect the CPAP machine's voltage, leaving you free from having to adjust any settings.

Travel Friendly

Our batteries are FAA/TSA compliant having a 98Wh capacity- just below the 100Wh threshold limit imposed by the airlines. The compact size and weight make it extremely portable and easy to bring on all your travels! The Pilot Flex makes travelling with your CPAP device easier than ever!

Longer Run Times

With an average run time of 16 hours, the Pilot Flex yields up to 30% more battery life than the Pilot Lites. Need more power? You can connect multiple Pilot Flex batteries together for an even stronger, longer lasting run time.

Always Aluminum, Never Plastic

Pilot Flex's aluminum casing redefines the meaning of modernity and durability! Using aluminum instead of plastics ensures the battery will be long lasting, corrosion resistant, and less prone to internal damage! Aluminum is both lightweight and extremely durable.

Smaller and Lighter

With a size of just 17 cubic inches the Pilot Flex is the smallest battery of its kind while still being more powerful than ever before. The battery weighs just over 1lb making it the ultimate travel companion.

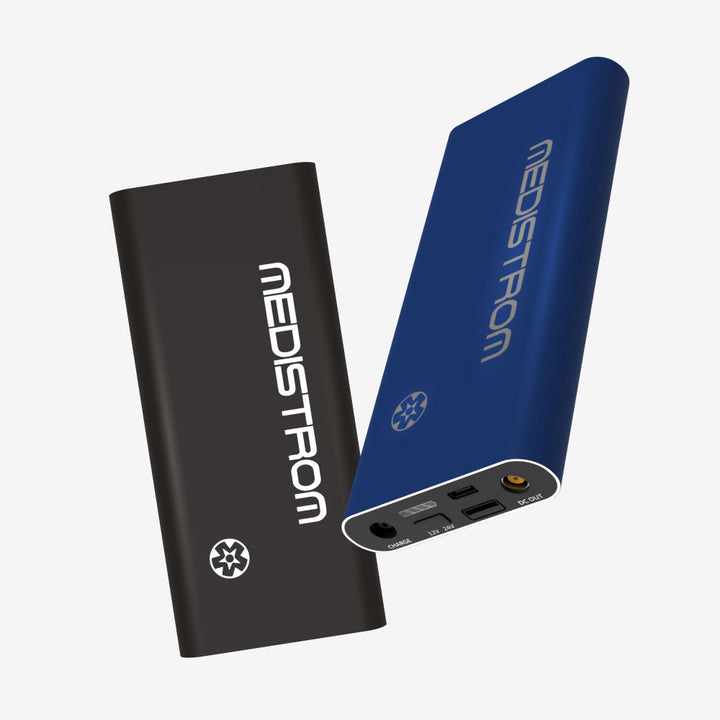

Different Colour Choices

Add a touch of personal style to your CPAP regime as we are proud to offer your Pilot Flex in one of 2 colour options; charcoal black or dark navy blue. The choice is yours!

1 Year Warranty

When things don't go as planned, rest assured, Medistrom has your back! Each purchase is backed by a 1 year warranty along with the help of our prompt technical support team. Our support line is available from 9AM-1AM EST.

Multiple Recharging Options

The Pilot Flex now offers four options for recharging your battery! By using the AC adapter which comes with your CPAP device. By charging your battery through the USB-C port (as a more compact travel option). By charging the Pilot Flex from the comfort of your car using our Medistrom Car Charger! By using our Medistrom Solar Panel, you can get the job done in even the most remote settings!

FAQs

How do I piggyback two Pilot Flex batteries together to increase the capacity?
  1. Insert the yellow tipped end of the DC output cable into the DC-out port of the first battery.
  2. Insert the other end of the DC output cable into the charge port of the second battery.
Which cables will I need to piggyback Pilot Flex batteries together?
  1. If you are using a 12V PAP device such as the Dreamstation, you will need the DC output cable for the Dreamstation to link two Flex batteries together.
  2. If you are using a 24V PAP device such as the ResMed Airsense 10/11, you will need the DC output cable for the Airsense 10 to link two Flex batteries together.
Why is my compatible CPAP not turning on when I connect the Pilot Flex battery to it?
  1. Press the multifunction button to start the CPAP.
  2. Check the charge level.
  3. Make sure that all the cable connections are inserted all the way.
Why is my CPAP displaying an error message (ex. check power, power at rear of device not inserted properly)?

Likely means that the DC output cable is faulty and will need to be replaced.

Why is my Pilot Flex battery overheating?
  1. The Pilot Flex battery will only overheat when placed uncovered in direct sunlight.
  2. When a temperature of 45°C is reached, the Pilot Flex will automatically shut off until the temperature is brought down.
Why is my Pilot Flex battery not charging my devices using the USB ports?
  1. Press the multifunction button to begin charging.
  2. Check if the USB cable is inserted correctly.
Can I charge the Pilot Flex using the USB-A port?

No, the Pilot Flex can be charged using the USB-C port.

Why is it taking so long to charge the battery using USB-C?

The USB-C port has a maximum input of 45W. Check if your charger and USB-C cable support 45W charging.

Why won't my AirMini cable stay connected to the machine?
  1. The AirMini DC output cable sometimes requires extra force to completely connect to the CPAP machine.
  2. Ensure the rubber section of the cable is inserted into the AirMini until the flange on the cable is flush with the CPAP cable port.
How do I connect my Pilot Flex to my CPAP machine?
  1. Please see our YouTube channel for tutorials on how to connect your Pilot Flex in Travel or Backup Configuration with your respective CPAP device.
