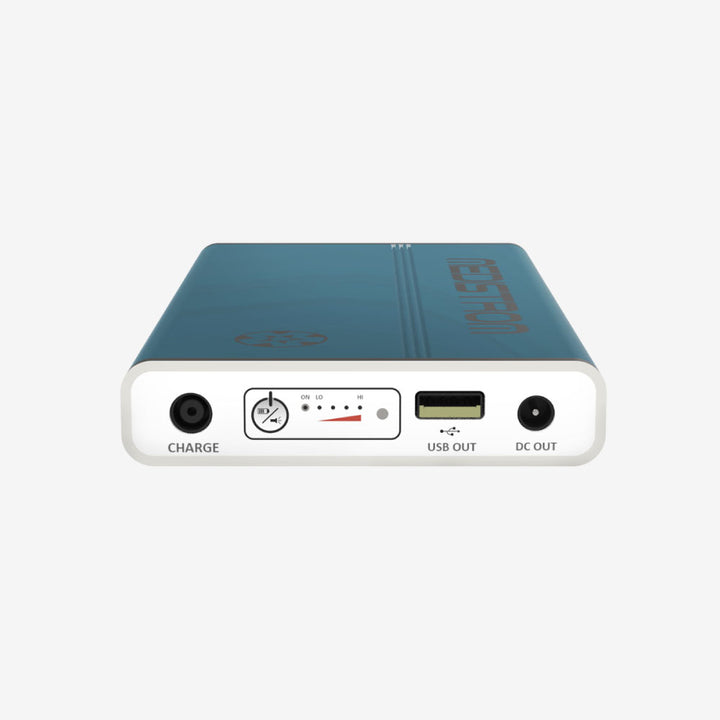

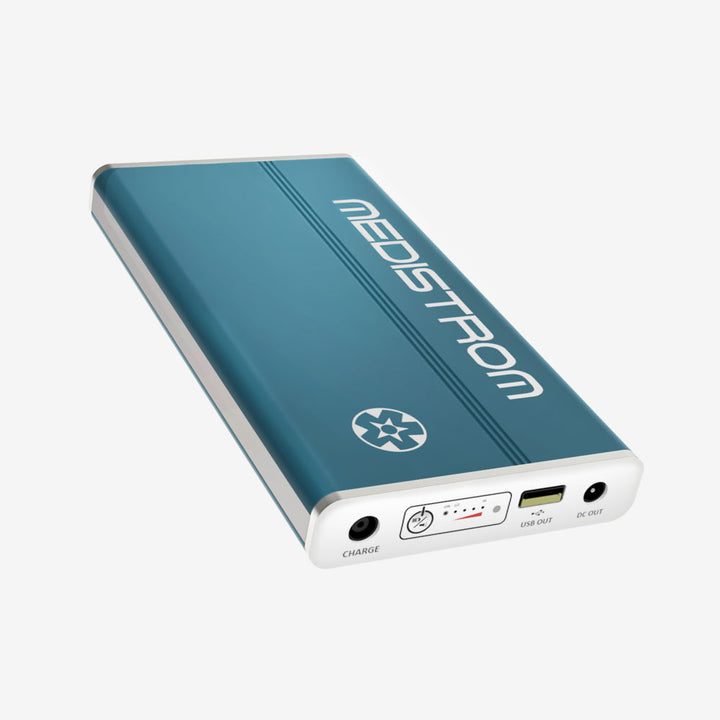

Medistrom Pilot-24 Lite

95Wh Backup Power Supply for 24V CPAP

  • Compatible with Various 12V PAP Machines
  • Portable, Standalone Power Source or as a Backup Power Source
  • Lightweight at Only 560g (1.3lbs)
  • FAA Compliant
Description

Introducing the Pilot-24 Lite - a revolutionary small Backup Power Supply & Portable Travel Battery.

Backup Power Supply - While using the Pilot-24 Lite as a permanent backup power supply, you can rest assured that you won't be woken up in the middle of the night to find that your PAP machine is not running.

Travel Battery - Using the Pilot-24 Lite as a Portable Travel PAP Battery will help you receive PAP therapy on the go. This includes remote locations where mains power is not available in situations such as camping, road trips, and during air travel.

Additional Features - The built-in USB port allows the Pilot-24 Lite to charge countless handheld electronic devices such as mobile phones and tablets. Also features a convenient built-in LED Flashlight.

Specifications
Capacity:95Wh
Cell Type:Industrial grade genuine LG rechargeable lithium ion cells
Rated Input: 24V, 60W (NORMAL), 90W (MAX)
Rated Output:DC 24V, 3.75A
USB Out:5V, 2.5A
Life Span:Over 500 full charge/discharge cycles
Case:Aluminium
Dimensions:17cm x 9cm x 2cm (6.7" x 3.5" x 0.8")
Weight:560g (1.3lbs)
Power Gauge:4 stage Charge Level Indicator Lights
Recharge time:2-3 hours via Medistrom AC Adapter (charging via other compatible adapters may take longer)
Compatibility
  • ResMed AirSense 11*
  • ResMed AirSense 10
  • ResMed AirMini
  • ResMed S9*
  • Löwenstein Medical Prisma SMART*(included in Europe)
  • Apex Medical iCH*
  • 3B Medical Luna*
  • Philips Respironics DreamStation Go Travel CPAP

*Cable required to connect Medistrom Pilot-24 Lite to these machines are sold separately. Click here to browse cable kits.

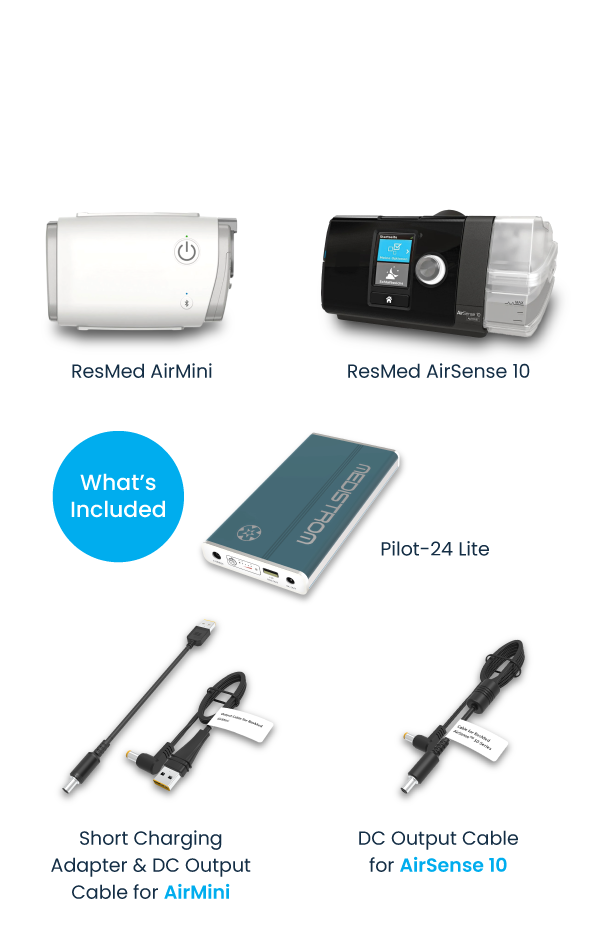

What's Included
  1. Pilot-24 Lite Battery
  2. Output Cable for ResMed AirSense 10
  3. Output Cable for ResMed AirMini
  4. Short Charging Adapter for ResMed AirMini
  5. Fabric Carrying Case
  6. Product Manual & Quick Start Guide (English, French, German, Spanish)

Documents
Download Manual
Download Quick Start Guide
Download Travel Letter
SKU: P24MPLBP1
Barcode: 645759689818

Medistrom Pilot-24 Lite

Accompanying Your CPAP Journey

* Durable Aluminum Casing with Great Heat Dissipation

* LG Industrial-grade Cells for Long-Lasting Power

FAA Compliant
TSA Approved

560g
(1.3lbs)

Built-in
USB Port

Built-in LED
Flashlight

Tested Runtime

With disabled humidifier & heated tubing

AirSense 10 AirMini AirSense 11
CPAP Settings Runtime
20 cm H2O 6h 32m 7h 08m 6h 58m
15 cm H2O 7h 58m 9h 50m 8h 55m
10 cm H2O 11h 16m 13h 49m 12h 33m
5 cm H2O 16h 25m 22h 55m 20h 11m

Using the Humidifier or Heated Tubing will reduce battery runtime to about 2-4 hours.

Power In Every Possible Situation

ON THE GO

Using Medistrom Pilot-24 Lite as main power source.

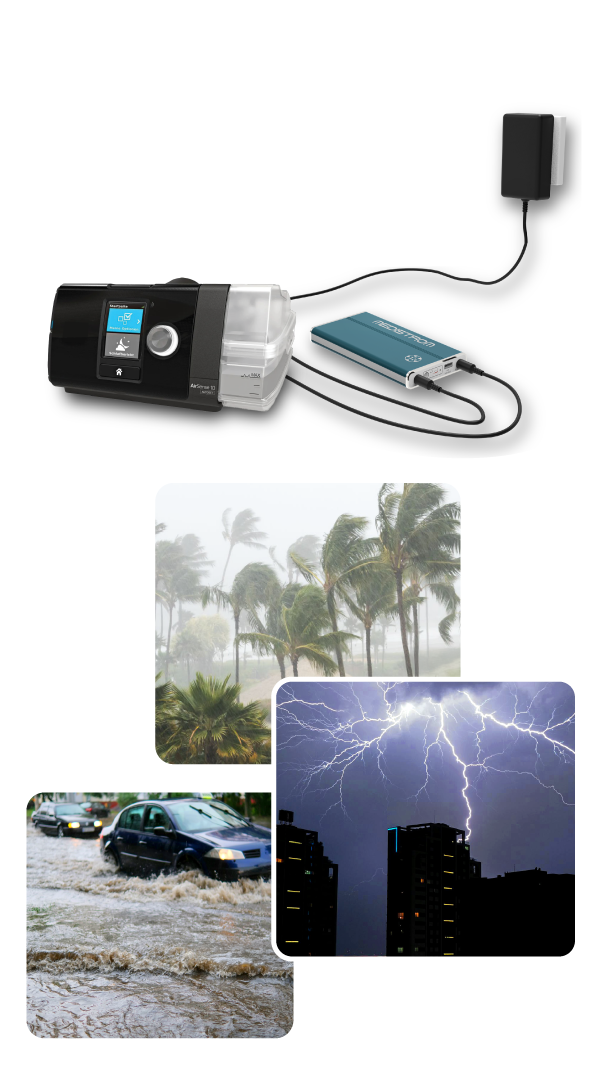

EMERGENCIES

Using Medistrom Pilot-24 Lite as backup power when power at home goes off.

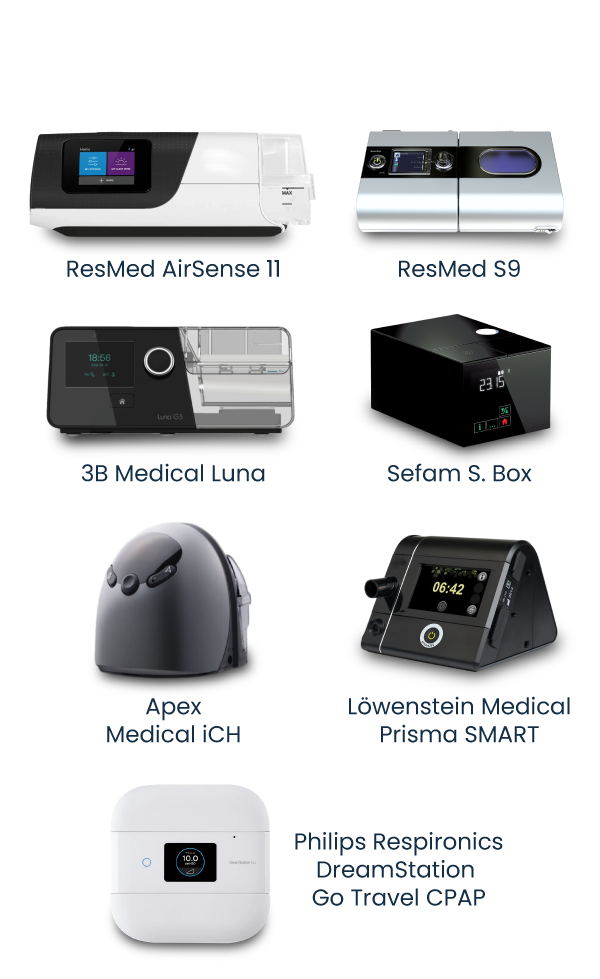

Compatible Machines Situation

*CPAP Machines NOT Included in Purchase

Cable Kits Included with Pilot-24 Purchase

Purchase of Medistrom Pilot-24 Lite comes with all necessary cables to connect to these machines.

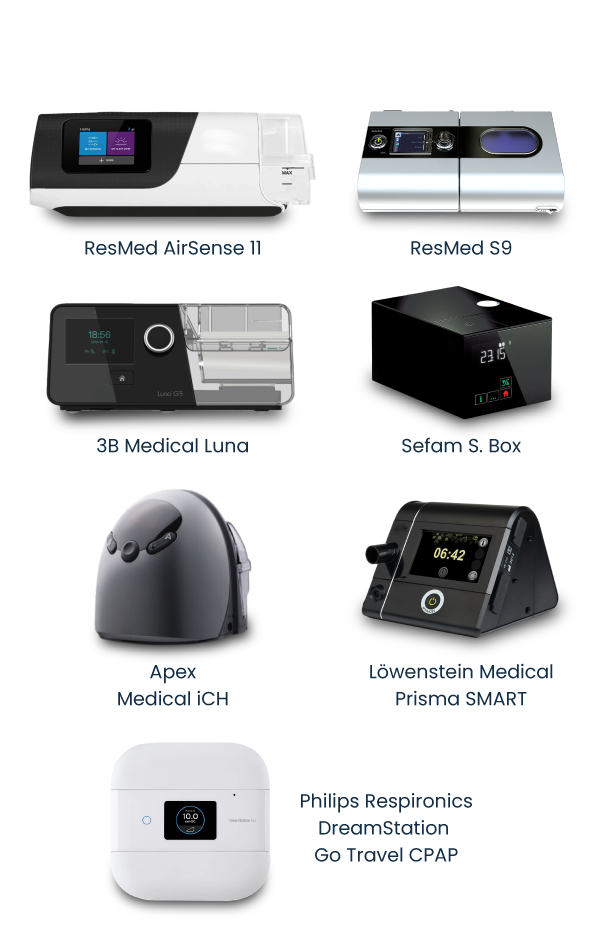

Separate Purchase of Cable Kit Required

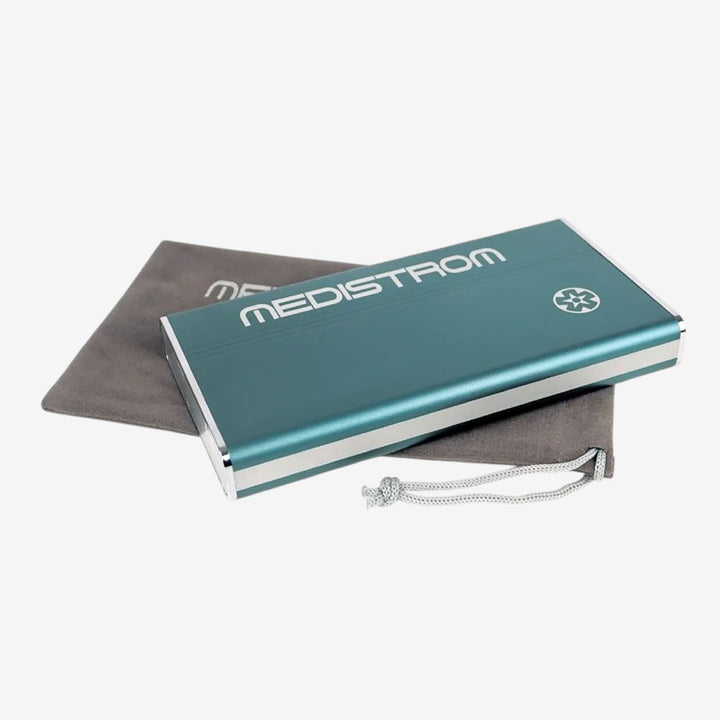

Fabric Carrying Case
• Protects Battery Outdoor
Durable Aluminum Case
• Superior Heat Dissipation
• Prevent Overheating
• Extends The Total Lifespan
• Extreme Durability
Genuine Industrial-grade Rechargeable Lithium-ion Cells
