Medistrom Pilot-12 Lite Cable Kits
Cable Kits for Different CPAP Machines

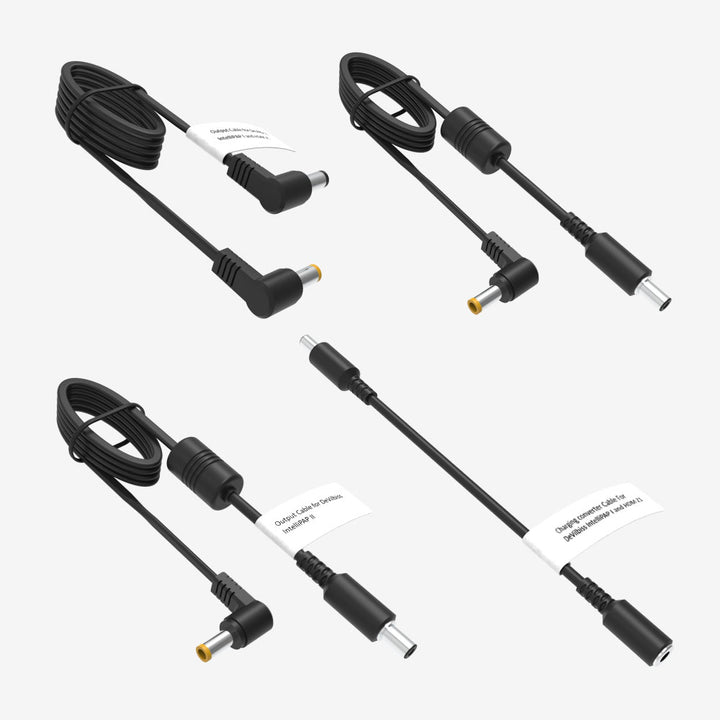

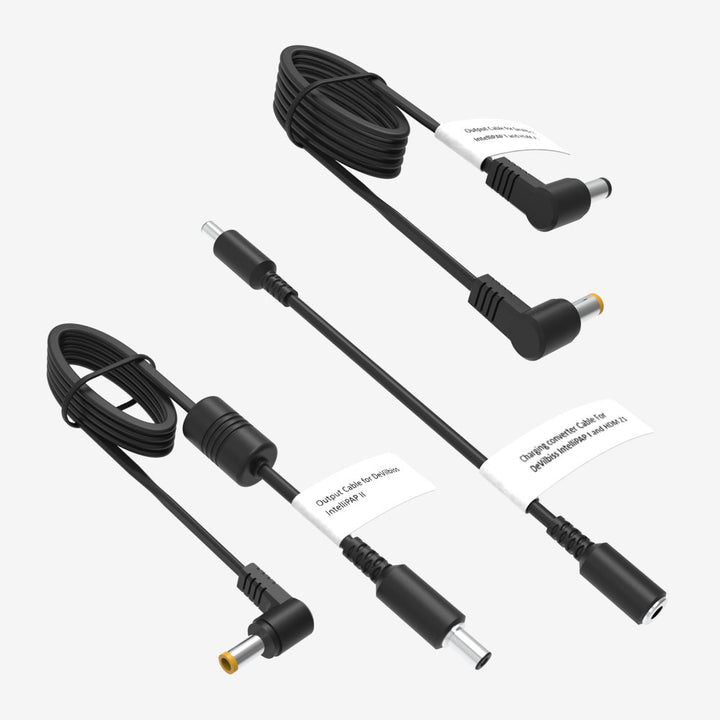

The Medistrom Pilot-12 Lite Cable Kits provide the necessary connections to seamlessly integrate your CPAP device with the Pilot-12 Lite battery. Designed for compatibility with leading CPAP brands, these durable cable kits ensure a secure and reliable power supply for uninterrupted therapy.
| Capacity | 98 Wh |
|---|---|
| Cell Type | LG/Samsung Industrial Grade Genuine Rechargeable Lithium Ion Cells |
| DC Rated Input | 12V-24V 60W |
| DC Rated Output | 12V/24V 60W |
| USB-A Out | 5V-12V 18W Max |
| USB-C Input | 5V-20V 45W Max |
| USB-C Out | 5V-20V 45W Max |
| Life Span | Over 500 full charge/discharge cycles |
| Battery Casing | Aluminum |
| Dimensions | 7.5cm x 16.7cm x 2cm |
| Weight | 1.2lb |
| Unlimited Linking Technology | Yes! You can link multiple batteries together for even stronger power |
| Power Gauge | 4 Stage Charge Level Indicator Lights |
| Recharge Time | 2-3 hours (7-9 using the ResMed AirMini AC Adapter; 4-6 hours using 45W USB-C charger) |
*Cable required to connect Medistrom Pilot-12 Lite Cable Kits to these machines are sold separately. Click here to browse cable kits.
| Brand | Machine Model | Pressure (cm H2O) | Humidifier and Heated Tubing | Run Time |
|---|---|---|---|---|
| ResMed | AirMini | Low - 5 | No | 19hrs 42min |
| Medium - 10 | 12hrs 44min | |||
| AirSense 10 | Low - 5 | Yes | 2hrs 33min | |
| No | 15hrs 54min | |||
| Medium - 10 | Yes | 2hrs 16min | ||
| No | 11hrs 20min | |||
| AirSense 11 | Low - 5 | Yes | 2hrs 59min | |
| No | 17hrs 55min | |||
| Medium - 10 | Yes | 2hrs 17min | ||
| No | 11hrs 34min | |||
| Philips Respironics | DreamStation 1 | Low - 5 | Yes | 3hrs 13min |
| No | 19hrs 13min | |||
| Medium - 10 | Yes | 3hrs 2min | ||
| No | 12hrs 16min | |||
| DreamStation 2 | Low - 5 | Yes | 3hrs 5min | |
| No | 17hrs 55min | |||
| Medium - 10 | Yes | 2hrs 53min | ||
| No | 12hrs | |||
| Löwenstein | Löwenstein Prisma SMART | Low - 5 | No | 17hrs 59min |
| Medium - 10 | No | 12hrs 49min | ||
| BMC | Luna G3 | Low - 5 | Yes | 3hrs 16min |
| No | 27hrs 8min | |||
| Medium - 10 | Yes | 3hrs 6min | ||
| No | 14hrs 47min |
Seamless Connection, Engineered for Precision
Medistrom™ Pilot-12 Lite Cable Kits provide the essential connection between compatible CPAP machine and Medistrom™ Pilot-12 Lite backup battery. Designed for secure compatibility and dependable performance, these cables help deliver stable power for uninterrupted sleep therapy at home, during travel or during unexpected power outages.
Compatible with Multiple CPAP Models

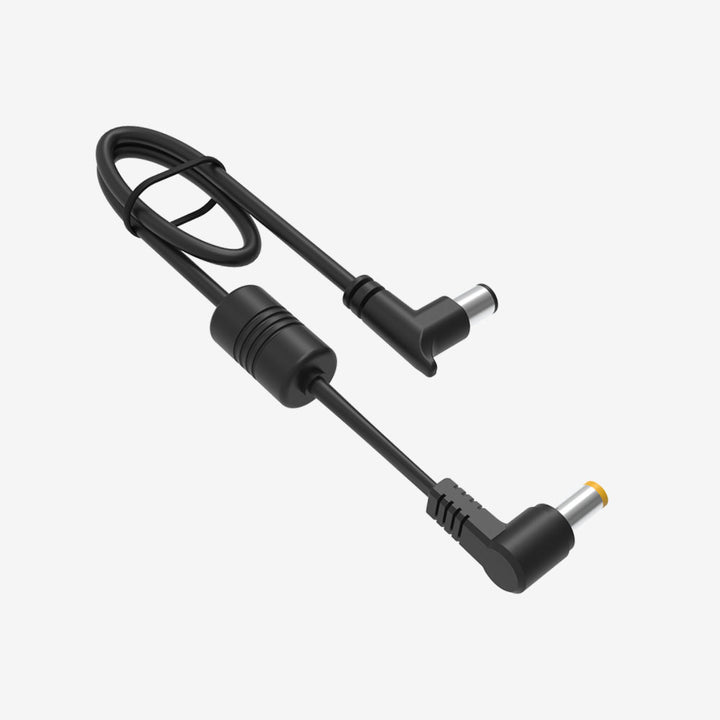

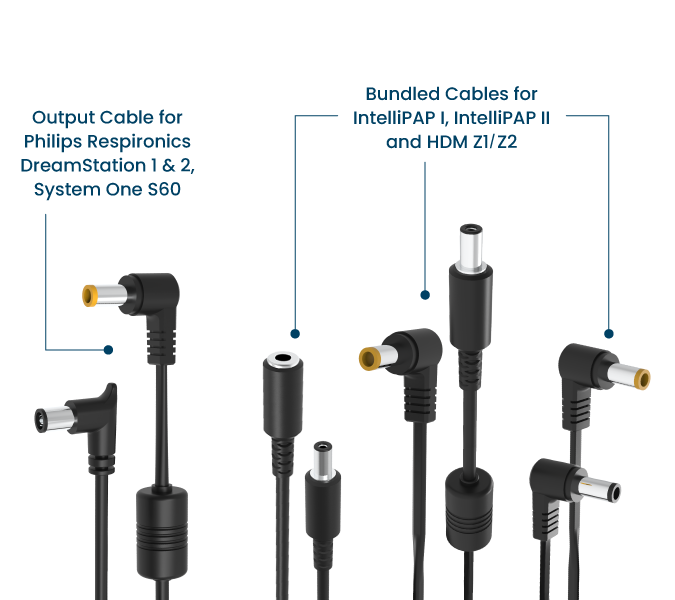

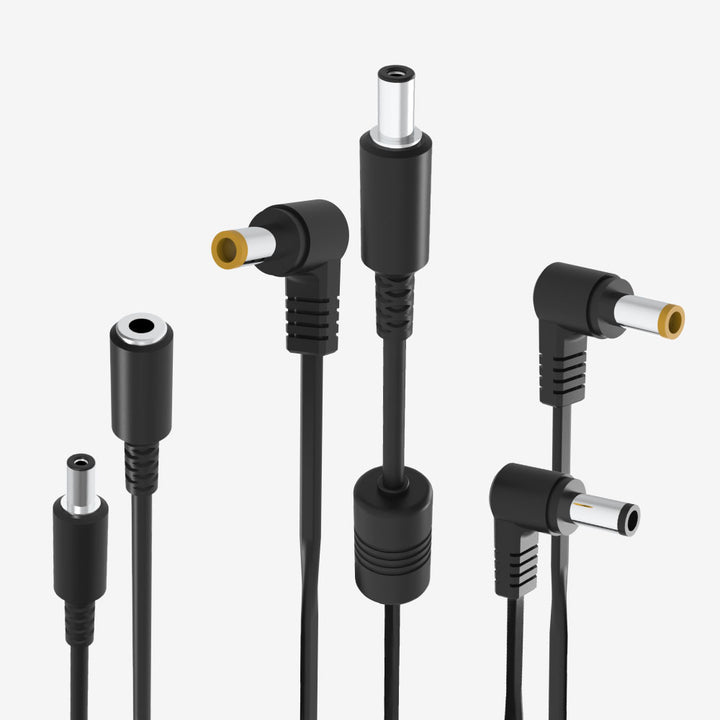

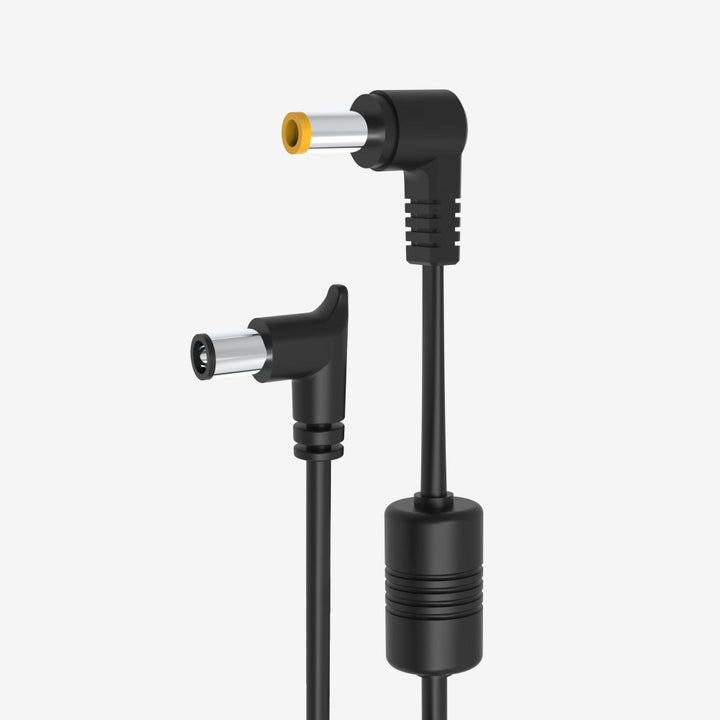

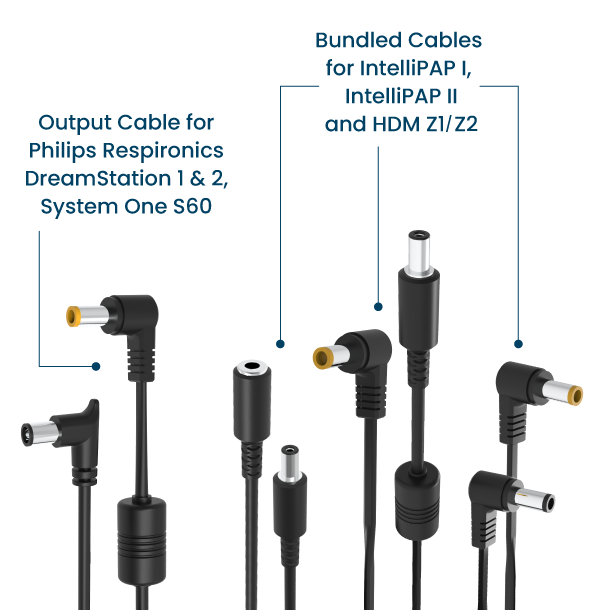

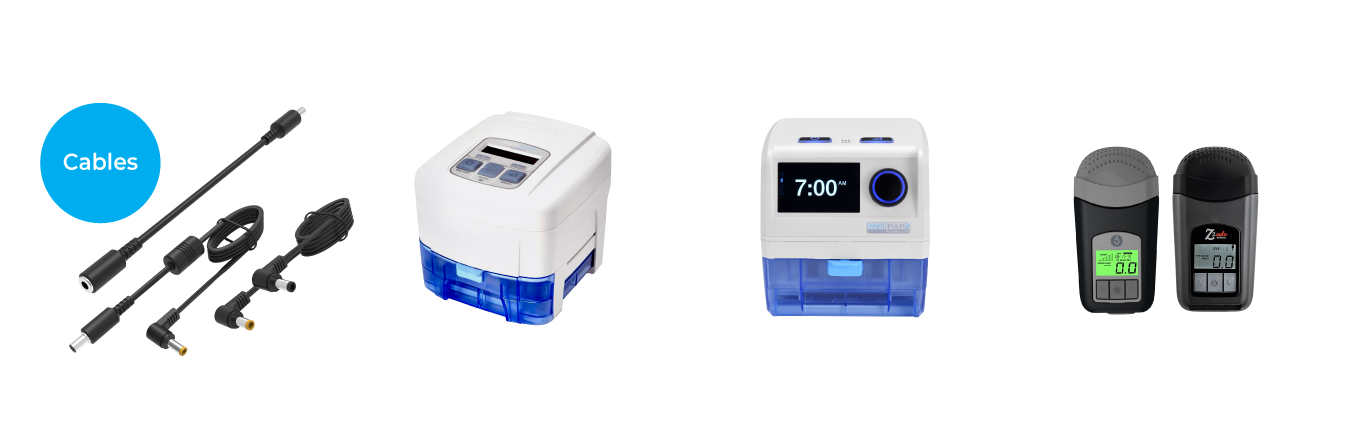

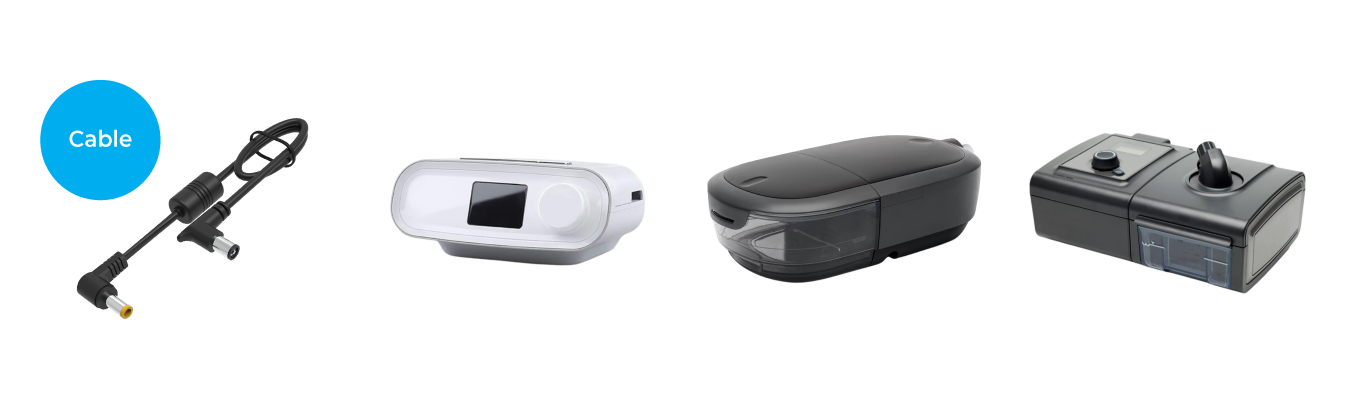

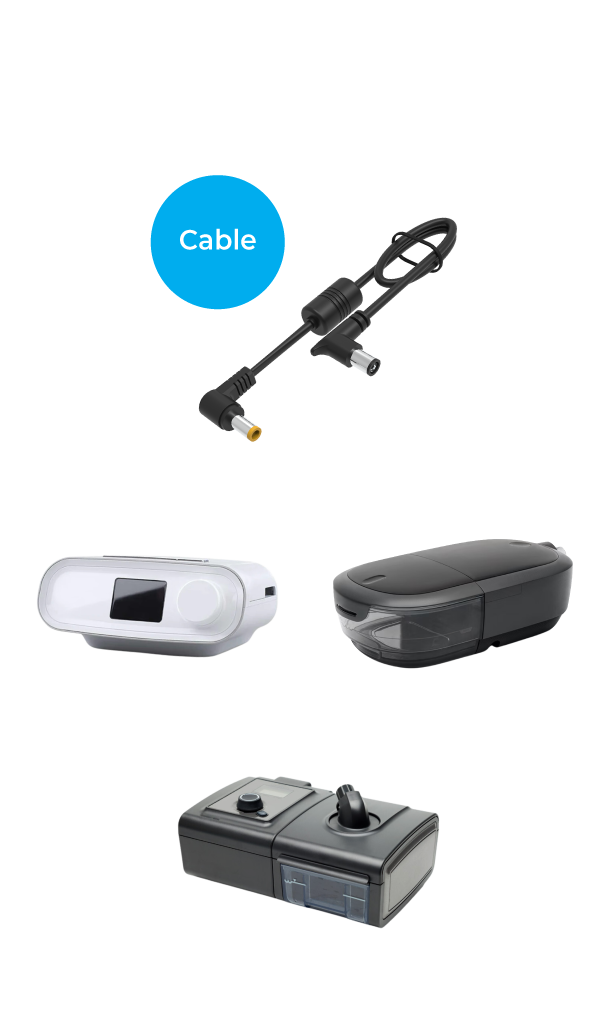

Medistrom™ Pilot-12 Lite cable kits support Philips Respironics DreamStation 1 & 2, System One S60, IntelliPAP I, IntelliPAP II and HDM Z1/Z2
Reliable Power Wherever You Go

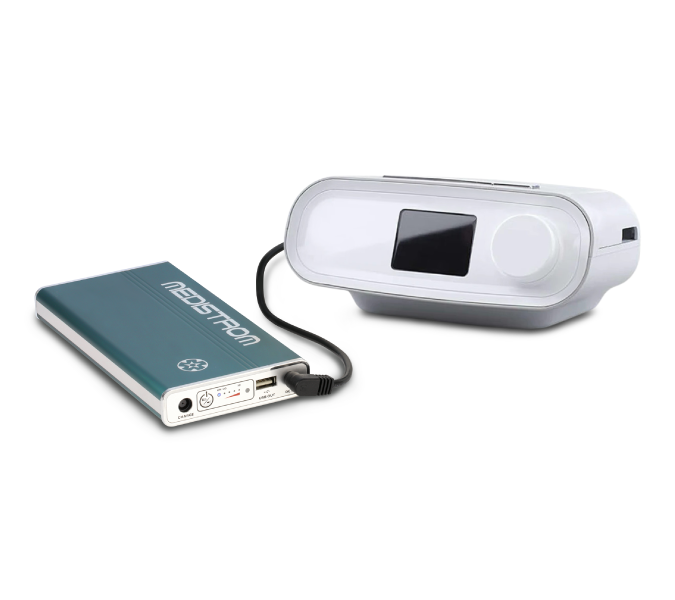

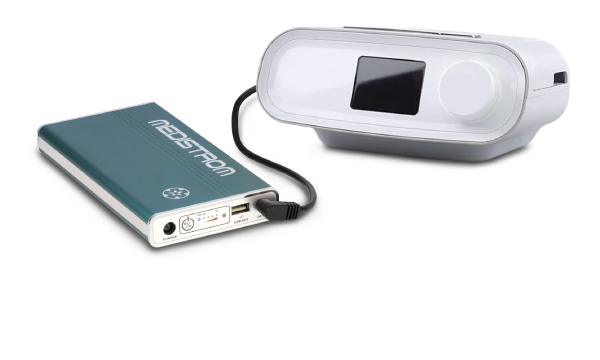

Whether you're traveling, camping or preparing for unexpected power outages, the Medistrom™ Pilot-12 Lite cable kits allow CPAP Machine to run directly from Medistrom™ Pilot-12 Backup Battery, ensuring uninterrupted CPAP therapy anytime, anywhere.
Simple Plug and Charge Setup
(A) Charging Mode
Charge your Pilot battery using the CPAP machine’s AC power adapter.
(B) Travel Mode
Run your CPAP directly from the Pilot battery without a wall outlet.
(C) Backup Mode
Automatically switch to battery power if the main electricity fails.
FAQs
Yes. Using the DC Output Cable, your compatible CPAP machine can run directly from the Medistrom™ Pilot battery, making it ideal for travel, camping or situations where a wall power source is not available.
Yes. In Backup Mode, if the main electricity supply fails, the Medistrom™ Pilot battery automatically powers your CPAP machine through the DC Output Cable, ensuring uninterrupted therapy.
Compatibility varies depending on the cable model. Please refer to the Compatibility Section for supported CPAP devices.
It depends on your CPAP setup and the mode you want to use:
- Travel Mode: Only the DC Output Cable is required to power your CPAP directly from the Medistrom™ Pilot battery.
- Backup Mode / Charging Mode: The Short Charging Adapter is needed to connect the AC power to the battery, which then supplies power to the CPAP through the DC Output Cable.
