Fast & Reliable 90W Charging Performance
The Medistrom™ AC Power Adapter delivers stable power output for efficient and consistent CPAP battery charging.

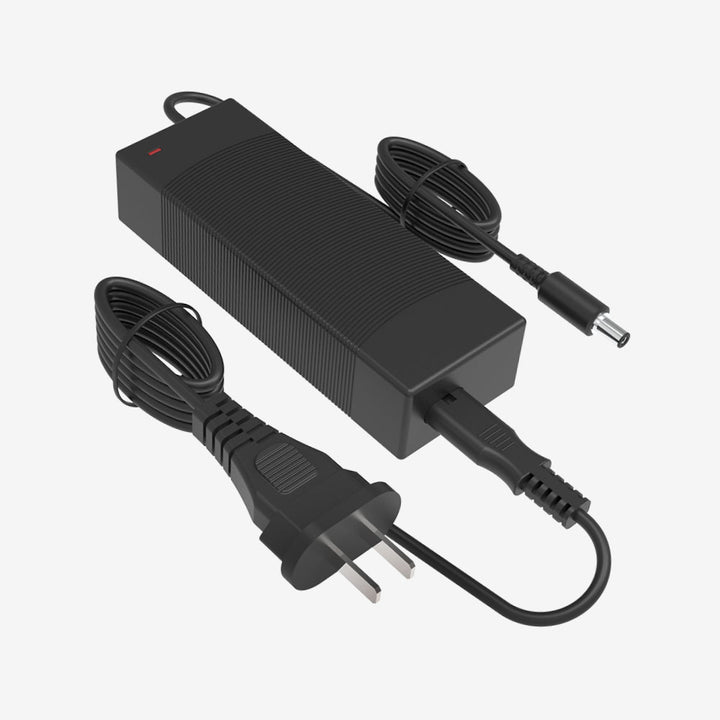

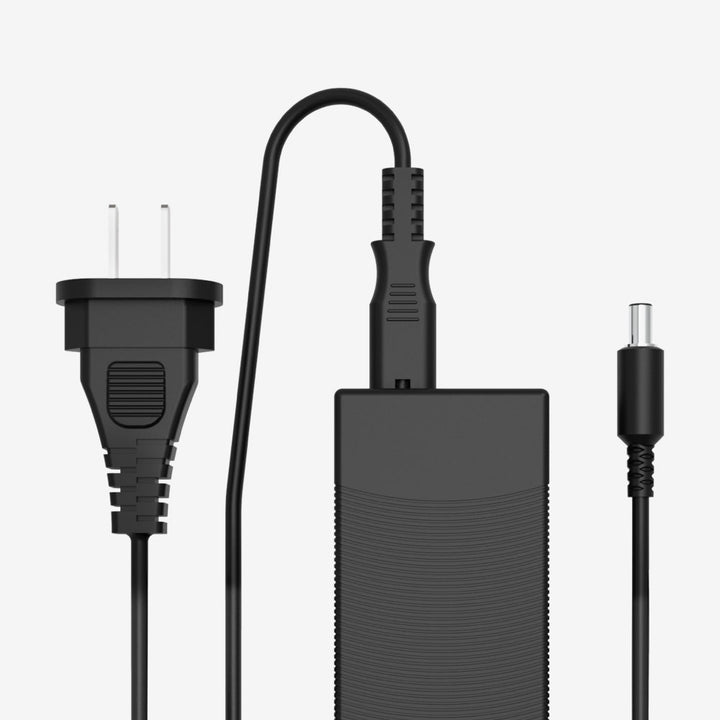

Medistrom AC Power Adapter for Pilot Lite Series & Pilot Flex
90W AC Power Adapter
Description
Keep your CPAP backup battery fully charged and ready with the Medistrom AC Power Adapter. Designed specifically for the Pilot-12 Lite, Pilot-24 Lite, and Pilot Flex batteries, this reliable adapter ensures safe and efficient charging whether at home or on the go.
Specifications
| Capacity | 98 Wh |
|---|---|
| Cell Type | LG/Samsung Industrial Grade Genuine Rechargeable Lithium Ion Cells |
| DC Rated Input | 12V-24V 60W |
| DC Rated Output | 12V/24V 60W |
| USB-A Out | 5V-12V 18W Max |
| USB-C Input | 5V-20V 45W Max |
| USB-C Out | 5V-20V 45W Max |
| Life Span | Over 500 full charge/discharge cycles |
| Battery Casing | Aluminum |
| Dimensions | 7.5cm x 16.7cm x 2cm |
| Weight | 1.2lb |
| Unlimited Linking Technology | Yes! You can link multiple batteries together for even stronger power |
| Power Gauge | 4 Stage Charge Level Indicator Lights |
| Recharge Time | 2-3 hours (7-9 using the ResMed AirMini AC Adapter; 4-6 hours using 45W USB-C charger) |

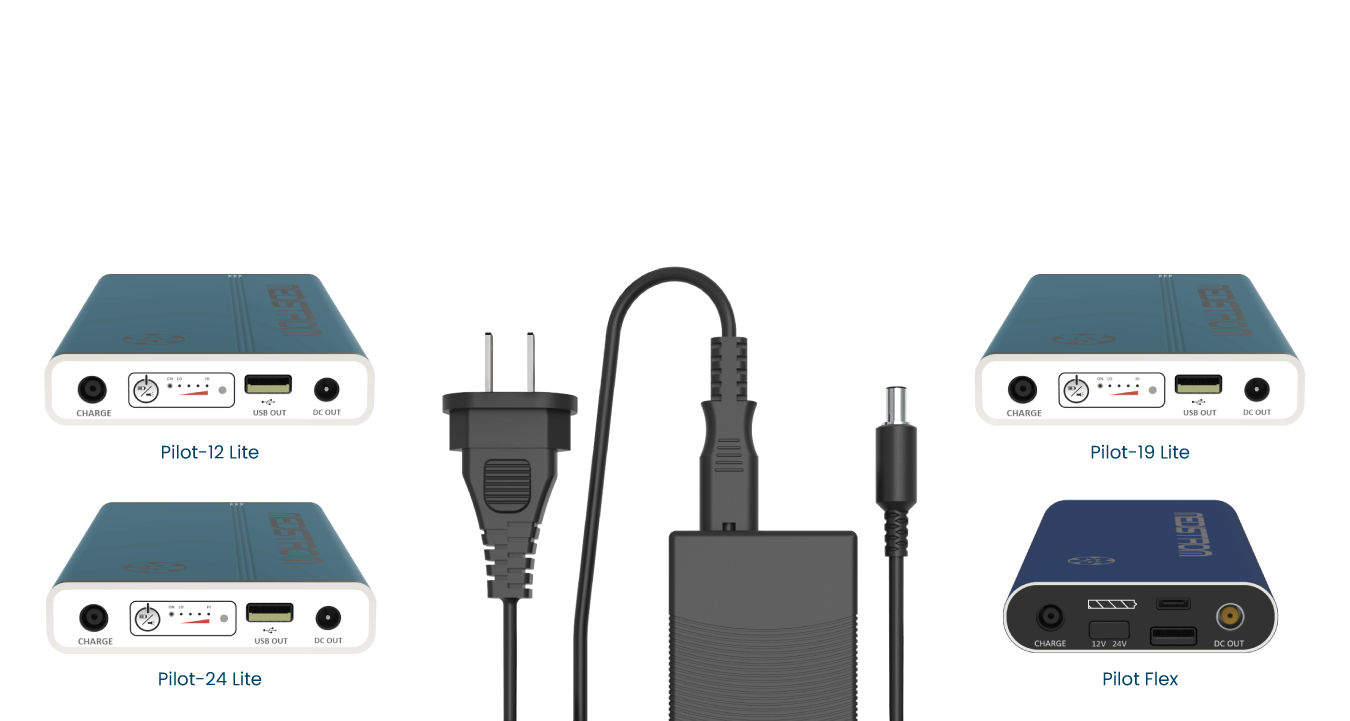

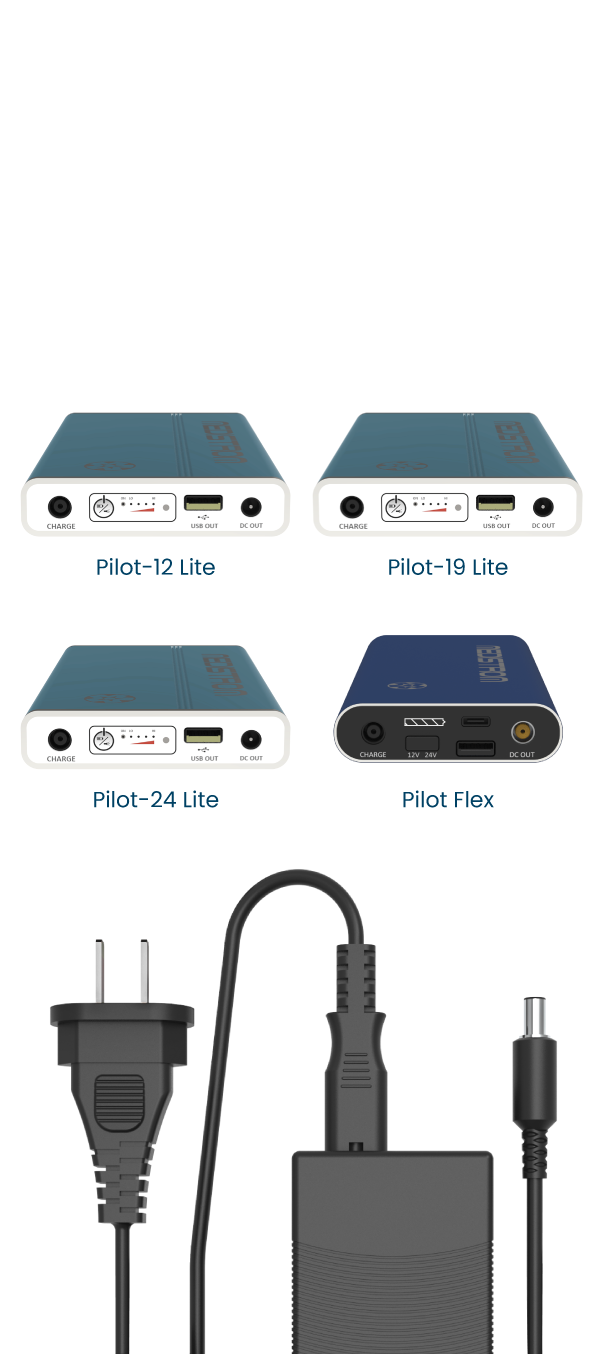

Compatibility
*Cable required to connect Medistrom AC Power Adapter for Pilot Lite Series & Pilot Flex to these machines are sold separately. Click here to browse cable kits.
Runtime
| Brand | Machine Model | Pressure (cm H2O) | Humidifier and Heated Tubing | Run Time |
|---|---|---|---|---|
| ResMed | AirMini | Low - 5 | No | 19hrs 42min |
| Medium - 10 | 12hrs 44min | |||
| AirSense 10 | Low - 5 | Yes | 2hrs 33min | |
| No | 15hrs 54min | |||
| Medium - 10 | Yes | 2hrs 16min | ||
| No | 11hrs 20min | |||
| AirSense 11 | Low - 5 | Yes | 2hrs 59min | |
| No | 17hrs 55min | |||
| Medium - 10 | Yes | 2hrs 17min | ||
| No | 11hrs 34min | |||
| Philips Respironics | DreamStation 1 | Low - 5 | Yes | 3hrs 13min |
| No | 19hrs 13min | |||
| Medium - 10 | Yes | 3hrs 2min | ||
| No | 12hrs 16min | |||
| DreamStation 2 | Low - 5 | Yes | 3hrs 5min | |
| No | 17hrs 55min | |||
| Medium - 10 | Yes | 2hrs 53min | ||
| No | 12hrs | |||
| Löwenstein | Löwenstein Prisma SMART | Low - 5 | No | 17hrs 59min |
| Medium - 10 | No | 12hrs 49min | ||
| BMC | Luna G3 | Low - 5 | Yes | 3hrs 16min |
| No | 27hrs 8min | |||
| Medium - 10 | Yes | 3hrs 6min | ||
| No | 14hrs 47min |
The Reliable Power Behind Your Pilot Battery
Keep your Medistrom™ Pilot CPAP backup battery fully charged with the official 90W AC Power Adapter. Designed for safe, stable and efficient charging at home or while traveling, it ensures your CPAP therapy is always ready when you need it.
Sleep Uninterrupted Even During Power Outages
Use your CPAP device while the battery charges. If mains power fails, the battery automatically switches to backup mode, ensuring continuous therapy without interruption.
Simple Plug and Charge Setup
(1) Plug the Medistrom AC Adapter into a wall outlet (100–240V worldwide compatible).
(2) Connect the output cable to your Pilot battery.
(3) The battery charges safely and efficiently for your next CPAP session.
